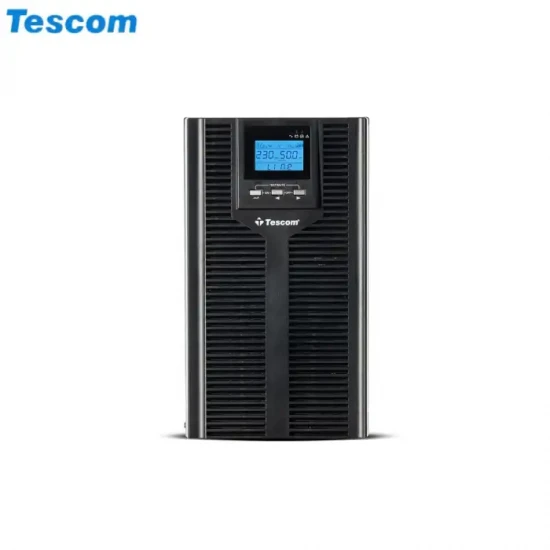

Name: UPS 3KVA/3000W TESCOM PRIME TOWER NEW
SKU: 0.503.716
Price: 755.63 EUR
Availability: InStock

UPS 3KVA/3000W TESCOM PRIME TOWER NEW

755,63€

Χωρίς ΦΠΑ: 609,38€

Απόθεμα: Διαθέσιμο
Κωδικός: AL0503716
Βάρος: 14.00kg
SKU: 0.503.716

Ποσότητα

Καλάθι

Αγορά Ρωτήστε μας

Επιθυμητό Σύγκριση

Χαρακτηριστικά
Αξιολόγηση

Default
Rated voltage	208 / 220 / 230 / 240 Vac
Display	LCD + LED
Voltage range	110 - 176 Vac (linear derating between 50% and 100% load ), 176 - 280 Vac (no derating), 280 - 300 Vac (derating 50%)
Frequency	50-60 Hz (auto-sensing), 45 - 55 Hz or 55 - 65 Hz (synchronized range), 50 / 60 Hz± 0.1 Hz (battery mode)
Bypass voltage range	- 40% +20% (settable)
Power factor	>= 0.99, 1.0
Net weight	23.8 kg
Voltage regulation	±1%
Voltage	208 / 220 / 230 / 240 Vac (settable via LCD)
Waveform	Sinusoidal
Crest factor	3:1
Overload	105% -110% for 30 min, 110% - 130% for 10 min, 130% - 150% for 30s, > 150% for 500 ms
Battery type	Sealed lead acid maintenance free battery
DC voltage	72 V (S)
Inbuilt battery	6 x 9 Ah
Recharge time	Standard model: 90% capacity restored in 3 hours, Long time model: depend on the capacity of battery
Mains Efficiency	Mains mode: >= 94.5%, Battery mode: >= 92.5%, ECO mode: >= 99.0%
Charging Current	12 A
Transfer time	Mains mode to battery mode: Oms Inverter mode to bypass mode: 4 ms (typical)
Protections	Short-circuit, overload, overtemperature, battery discharge protection and fan testing protection
Storage temperature	-25°C - 55°C (exclude batteries)
Communication port	RS232 (standard), USB / RS485 / dry contacts / SNMP (optional)
Standards	EN 62040-1, EN 62040-2, EN 61000-3-2, EN 61000-3-3, IEC 61000-4-2, IEC 61000-4-3, IEC 61000-4-4, IEC 61000-4-5, IEC 61000-4-6, IEC 61000-4-8, IEC 61000-4-11, IEC 61000-2-2, IEC 62040-2, IEC 62040-1
Operating humidity	0- 95% RH @ 0- 40°C (non-condensing)
Dimensions (W × D × H) (mm)	191 x 419 x 335
IP rating	IP 20
Packaged dimensions	277 x 500 x 435
